Registration form in Java with Database Connectivity Tutorial

Hello friends, welcome to another tutorial. In this tutorial, we will learn how to create a Gui Registration Form in Java With Database Connectivity. For this example, I will create a student registration form using Java swing with the database connectivity, and the source code can be downloaded at the end of the tutorial.

In my previous tutorial we have learned about how to create a Login Form in Java, and also we have learned about how to create a Simple Calculator Using Java Swing, and now we will see how we can create the registration form in Java and we will connect it with MySQL database.

I will use Eclipse IDE for the coding part of my program, and for my database, I am going to use MySQL workbench. MySQL workbench is nothing but a GUI version of MySQL console where we can visually design, model, generate and design databases.

So let’s start our tutorial Registration Form in Java With Database Connectivity.

Also Read –> How to Connect MySQL Database in Java Using Eclipse

Contents

1 Registration Form in Java With Database Connectivity

Registration Form in Java With Database Connectivity

Prerequisites

First of all, make sure that you have the following piece of software on your system,

After you have downloaded these Softwares from the above links just follow the simple installation process and you are ready to go.

You can also see my Article How to install MySQL Workbench to learn about the installation process of MySQL Workbench with simple and easy steps.

Creating Database in MySQL WorkBench

step 1

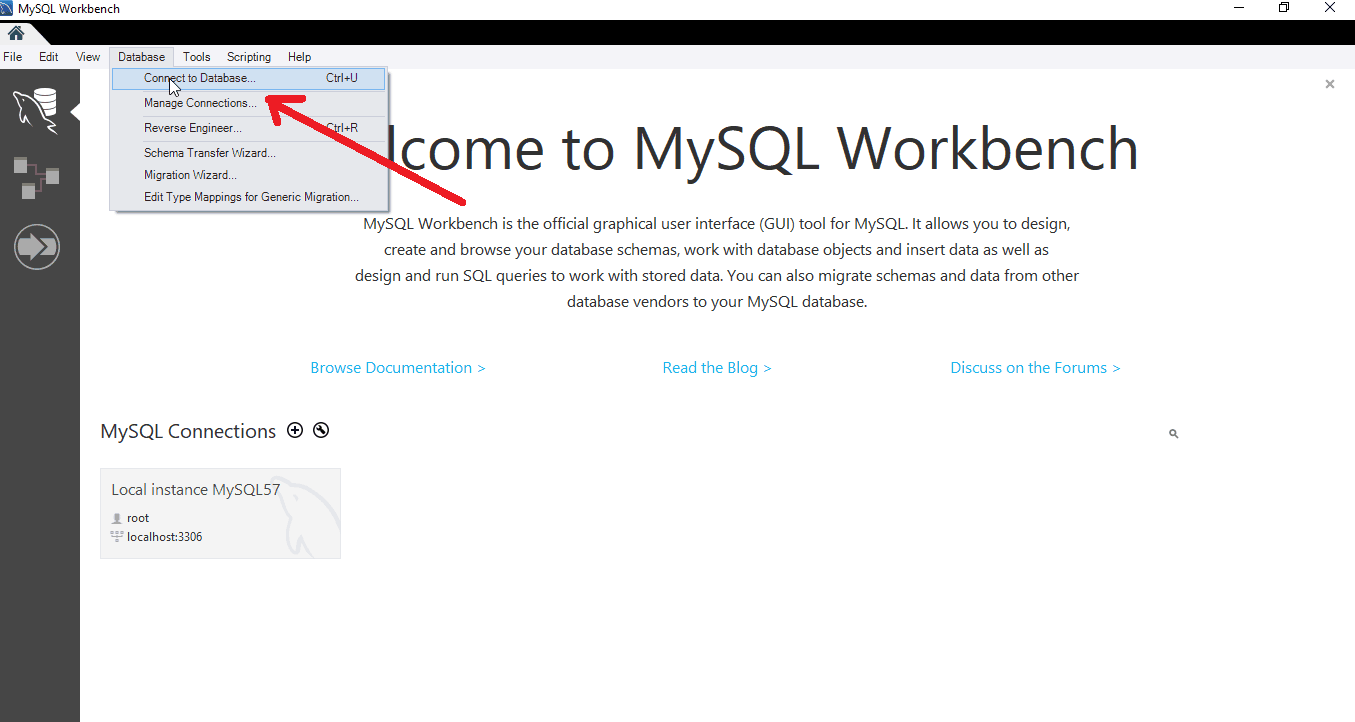

Open MySQL WorkBench and then go to Database>Connect to Database.

Registration form in java with database connectivity-fig-1

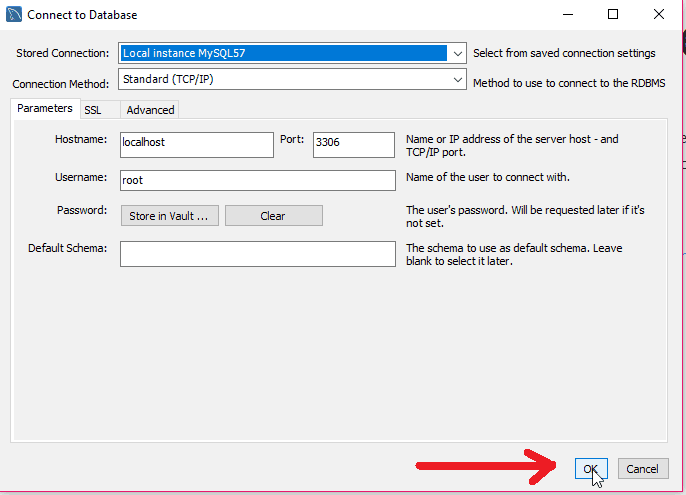

A pop-up window will be opened just click on ok.

Registration form in java with database connectivity-fig-2

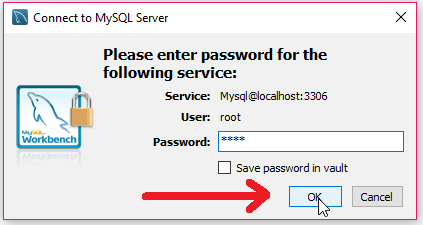

Once you click on “ok” it will ask you for a password.it is the same password which you have used during the installation process. So enter the correct password and then click on the “ok” button.

Registration form in java with database connectivity-fig-3

Now we will create a database (myDatabase in this example) and inside that database, we will create a table (student in this example) with the following fields,
- USERNAME
- GENDER
- FATHERS_NAME
- PASSWRD
- CONFIRMPASSWRD
- CITY
- EMAIL

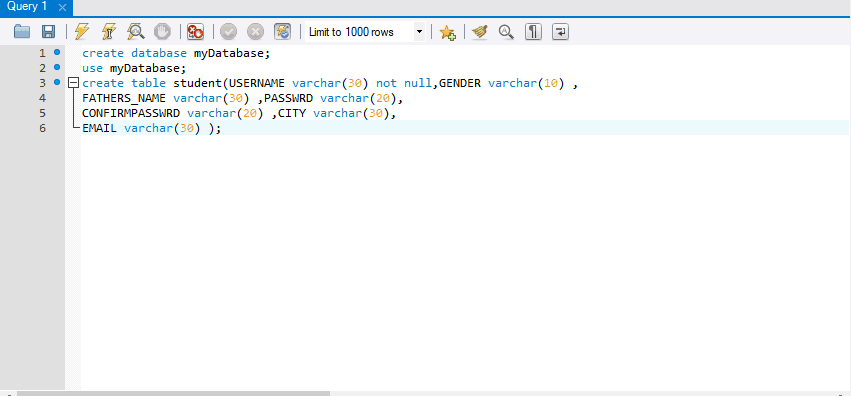

Registration form in java with database connectivity-fig-4

create database myDatabase;
use myDatabase;
create table student(USERNAME varchar(30) not null,GENDER varchar(10) ,
FATHERS_NAME varchar(30) ,PASSWRD varchar(20),
CONFIRMPASSWRD varchar(20) ,CITY varchar(30),
EMAIL varchar(30) );

create database myDatabase;

use myDatabase;

create table student(USERNAME varchar(30) not null,GENDER varchar(10) ,

FATHERS_NAME varchar(30) ,PASSWRD varchar(20),

CONFIRMPASSWRD varchar(20) ,CITY varchar(30),

EMAIL varchar(30) );

Creating Window For Our Registration Form

Step 2

The next thing we have to do is to create the window for our registration form so that we can add components to it.
Go to Eclipse IDE and create a new Java Project.

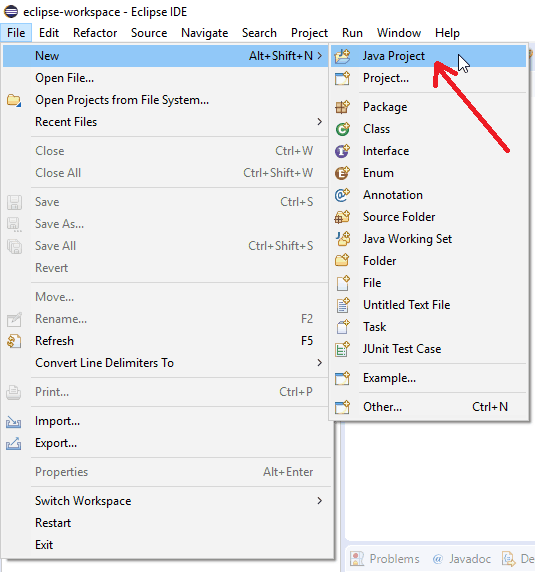

For this, you click on the Java Project under the new section of File Menu (File>>New>>Java Project).

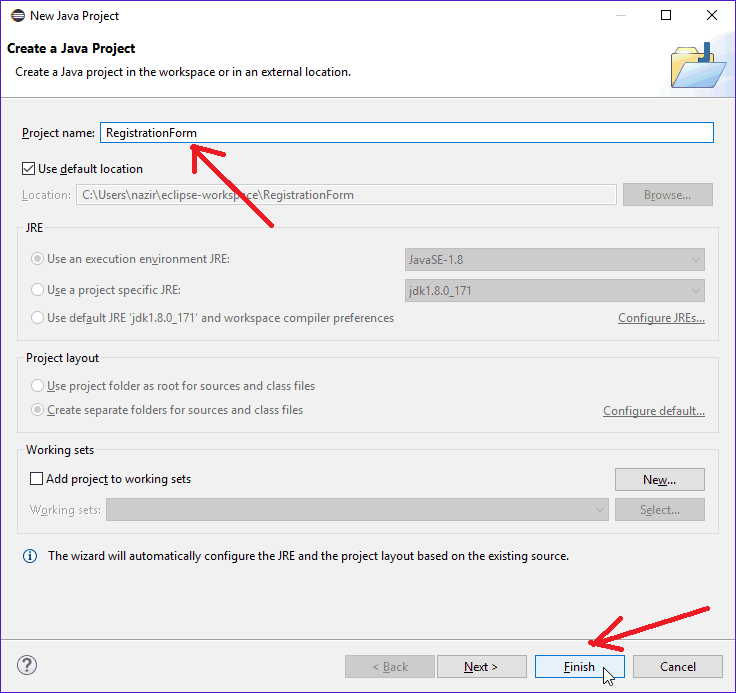

Now give a name to your project (RegistrationForm in this example) and click on “Finish”.

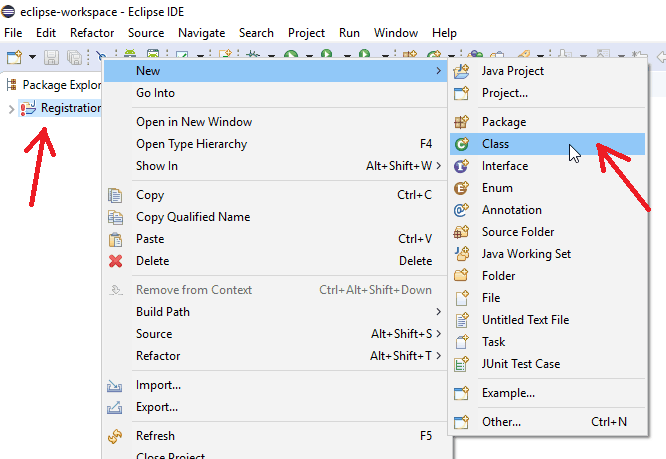

Now right click on the project and create a new Java class (New>>Class).

Registration form in java with database connectivity-fig-7

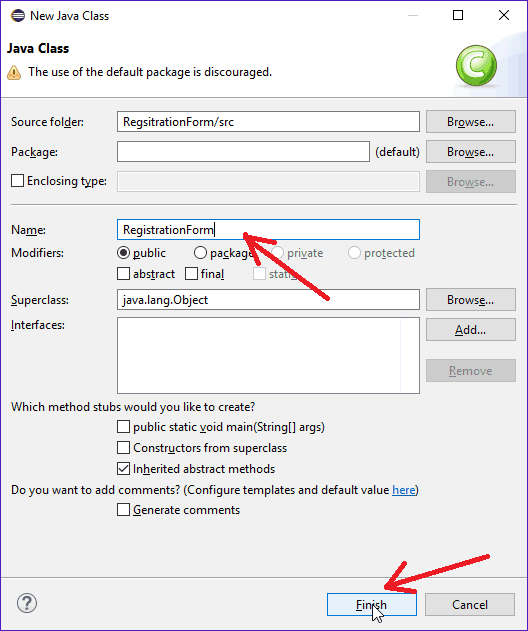

Now give a name to your class(RegistrationForm in this Example) and then click on the Finish button.

Registration form in java with database connectivity-fig-8

Now import all necessary packages.
Implement ActionListener interface to our class so that we will be able to do some button click event in our program.And if we are implementing the ActionListener interface in our class then we have to override it’s method actionPerformed() into our class.

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {

    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

@Override

public void actionPerformed(ActionEvent e) {

}

Now create an object of the JFrame class.

Create a user-defined method createWindow() and inside that, we will set all the properties of our JFrame like its title, its Location and Size, its Visibility, its Default Close Operation, Its Background color, its Layout etc.

//importing packages
import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {

    //Creating object of JFrame class
    JFrame frame;

    //Creating user-defined method
    public void createWindow()
    {
       //Setting properties of JFrame
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }


    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

//importing packages

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

//Creating object of JFrame class

JFrame frame;

//Creating user-defined method

public void createWindow()

{

//Setting properties of JFrame

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

@Override

public void actionPerformed(ActionEvent e) {

}

Now create the constructor of the class and we will call the createWindow() method from constructor.

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {
    JFrame frame;
    //Creating constructor
    RegistrationForm()
    {

        createWindow();//calling method from constructor
    }
    public void createWindow()
    {
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }


    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

JFrame frame;

//Creating constructor

RegistrationForm()

{

createWindow();//calling method from constructor

}

public void createWindow()

{

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

@Override

public void actionPerformed(ActionEvent e) {

}

Now again right click on the Project and create another class (Main in this example) so that we can create the object of RegistrationForm class inside main() method.

public class Main {
    public static void main(String[] args)
    {
        //creating object of RegistrationForm class
        new RegistrationForm();
    }
}

public class Main {

public static void main(String[] args)

{

//creating object of RegistrationForm class

new RegistrationForm();

}

Now run your program.

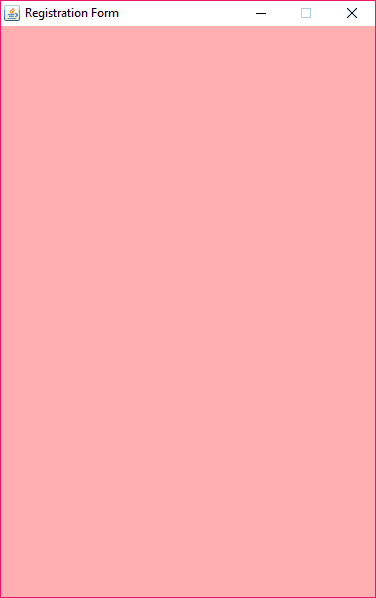

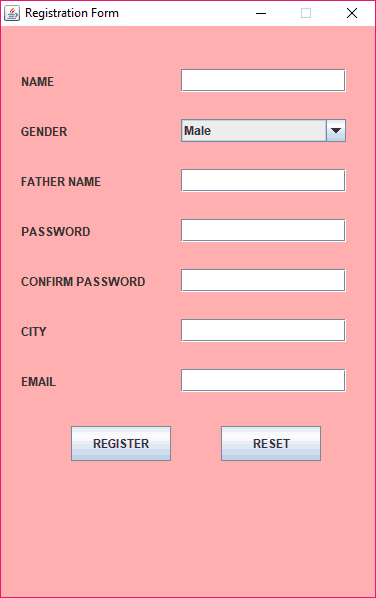

Registration form in java with database connectivity-fig-9

As you can see that we have created our window and now we can add components to it.

Adding Components To Window

Step 3

Create the object of
- 7 JLabel (NAME,GENDER,FATHER NAME,PASSWORD,CONFIRM PASSWORD,CITY,EMAIL).
- 4 JTextField (For entering the information name,father name,city and email).
- 2 JPasswordField (one for entering the password and other for confirming the password)
- An array of String with two items “Male” and “Female”.
- One JComboBox for selecting gender of the user and we will pass String array to the constructor of JComboBox.
- 2 JButton(REGISTER and RESET).

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {
    JFrame frame;

    //Creating objects
    String[] gender={"Male","Female"};
    JLabel nameLabel=new JLabel("NAME");
    JLabel genderLabel=new JLabel("GENDER");
    JLabel fatherNameLabel=new JLabel("FATHER NAME");
    JLabel passwordLabel=new JLabel("PASSWORD");
    JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");
    JLabel cityLabel=new JLabel("CITY");
    JLabel emailLabel=new JLabel("EMAIL");
    JTextField nameTextField=new JTextField();
    JComboBox genderComboBox=new JComboBox(gender);
    JTextField fatherTextField=new JTextField();
    JPasswordField passwordField=new JPasswordField();
    JPasswordField confirmPasswordField=new JPasswordField();
    JTextField cityTextField=new JTextField();
    JTextField emailTextField=new JTextField();
    JButton registerButton=new JButton("REGISTER");
    JButton resetButton=new JButton("RESET");


    RegistrationForm()
    {
        createWindow();
    }
    public void createWindow()
    {
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }


    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

JFrame frame;

//Creating objects

String[] gender={"Male","Female"};

JLabel nameLabel=new JLabel("NAME");

JLabel genderLabel=new JLabel("GENDER");

JLabel fatherNameLabel=new JLabel("FATHER NAME");

JLabel passwordLabel=new JLabel("PASSWORD");

JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");

JLabel cityLabel=new JLabel("CITY");

JLabel emailLabel=new JLabel("EMAIL");

JTextField nameTextField=new JTextField();

JComboBox genderComboBox=new JComboBox(gender);

JTextField fatherTextField=new JTextField();

JPasswordField passwordField=new JPasswordField();

JPasswordField confirmPasswordField=new JPasswordField();

JTextField cityTextField=new JTextField();

JTextField emailTextField=new JTextField();

JButton registerButton=new JButton("REGISTER");

JButton resetButton=new JButton("RESET");

RegistrationForm()

{

createWindow();

}

public void createWindow()

{

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

@Override

public void actionPerformed(ActionEvent e) {

}

Now as we have created components now the next task is to set the location and size of them using the setBounds() method and when we are done with setting the size and location of our components then we have to add them to the JFrame(our Window) using the add() method.

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {
    JFrame frame;
    String[] gender={"Male","Female"};
    JLabel nameLabel=new JLabel("NAME");
    JLabel genderLabel=new JLabel("GENDER");
    JLabel fatherNameLabel=new JLabel("FATHER NAME");
    JLabel passwordLabel=new JLabel("PASSWORD");
    JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");
    JLabel cityLabel=new JLabel("CITY");
    JLabel emailLabel=new JLabel("EMAIL");
    JTextField nameTextField=new JTextField();
    JComboBox genderComboBox=new JComboBox(gender);
    JTextField fatherTextField=new JTextField();
    JPasswordField passwordField=new JPasswordField();
    JPasswordField confirmPasswordField=new JPasswordField();
    JTextField cityTextField=new JTextField();
    JTextField emailTextField=new JTextField();
    JButton registerButton=new JButton("REGISTER");
    JButton resetButton=new JButton("RESET");


    RegistrationForm()
    {
       //Calling methods from constructor
        createWindow();
        setLocationAndSize();
        addComponentsToFrame();
    }
    public void createWindow()
    {
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }
    public void setLocationAndSize()
    {
        //Setting Location and Size of Each Component
        nameLabel.setBounds(20,20,40,70);
        genderLabel.setBounds(20,70,80,70);
        fatherNameLabel.setBounds(20,120,100,70);
        passwordLabel.setBounds(20,170,100,70);
        confirmPasswordLabel.setBounds(20,220,140,70);
        cityLabel.setBounds(20,270,100,70);
        emailLabel.setBounds(20,320,100,70);
        nameTextField.setBounds(180,43,165,23);
        genderComboBox.setBounds(180,93,165,23);
        fatherTextField.setBounds(180,143,165,23);
        passwordField.setBounds(180,193,165,23);
        confirmPasswordField.setBounds(180,243,165,23);
        cityTextField.setBounds(180,293,165,23);
        emailTextField.setBounds(180,343,165,23);
        registerButton.setBounds(70,400,100,35);
        resetButton.setBounds(220,400,100,35);
    }
    public void addComponentsToFrame()
    {
        //Adding components to Frame
        frame.add(nameLabel);
        frame.add(genderLabel);
        frame.add(fatherNameLabel);
        frame.add(passwordLabel);
        frame.add(confirmPasswordLabel);
        frame.add(cityLabel);
        frame.add(emailLabel);
        frame.add(nameTextField);
        frame.add(genderComboBox);
        frame.add(fatherTextField);
        frame.add(passwordField);
        frame.add(confirmPasswordField);
        frame.add(cityTextField);
        frame.add(emailTextField);
        frame.add(registerButton);
        frame.add(resetButton);
    }




    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

JFrame frame;

String[] gender={"Male","Female"};

JLabel nameLabel=new JLabel("NAME");

JLabel genderLabel=new JLabel("GENDER");

JLabel fatherNameLabel=new JLabel("FATHER NAME");

JLabel passwordLabel=new JLabel("PASSWORD");

JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");

JLabel cityLabel=new JLabel("CITY");

JLabel emailLabel=new JLabel("EMAIL");

JTextField nameTextField=new JTextField();

JComboBox genderComboBox=new JComboBox(gender);

JTextField fatherTextField=new JTextField();

JPasswordField passwordField=new JPasswordField();

JPasswordField confirmPasswordField=new JPasswordField();

JTextField cityTextField=new JTextField();

JTextField emailTextField=new JTextField();

JButton registerButton=new JButton("REGISTER");

JButton resetButton=new JButton("RESET");

RegistrationForm()

{

//Calling methods from constructor

createWindow();

setLocationAndSize();

addComponentsToFrame();

}

public void createWindow()

{

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

public void setLocationAndSize()

{

//Setting Location and Size of Each Component

nameLabel.setBounds(20,20,40,70);

genderLabel.setBounds(20,70,80,70);

fatherNameLabel.setBounds(20,120,100,70);

passwordLabel.setBounds(20,170,100,70);

confirmPasswordLabel.setBounds(20,220,140,70);

cityLabel.setBounds(20,270,100,70);

emailLabel.setBounds(20,320,100,70);

nameTextField.setBounds(180,43,165,23);

genderComboBox.setBounds(180,93,165,23);

fatherTextField.setBounds(180,143,165,23);

passwordField.setBounds(180,193,165,23);

confirmPasswordField.setBounds(180,243,165,23);

cityTextField.setBounds(180,293,165,23);

emailTextField.setBounds(180,343,165,23);

registerButton.setBounds(70,400,100,35);

resetButton.setBounds(220,400,100,35);

}

public void addComponentsToFrame()

{

//Adding components to Frame

frame.add(nameLabel);

frame.add(genderLabel);

frame.add(fatherNameLabel);

frame.add(passwordLabel);

frame.add(confirmPasswordLabel);

frame.add(cityLabel);

frame.add(emailLabel);

frame.add(nameTextField);

frame.add(genderComboBox);

frame.add(fatherTextField);

frame.add(passwordField);

frame.add(confirmPasswordField);

frame.add(cityTextField);

frame.add(emailTextField);

frame.add(registerButton);

frame.add(resetButton);

}

@Override

public void actionPerformed(ActionEvent e) {

}

Now run your program.

Now you can see that we have successfully added the components to our window.
Now we have to do is to add actionListener to the buttons so that when we click on the buttons actionPerformed() method will be called.

Adding ActionListener to Buttons

Step 4

For this, we are going to call addActionListener() method using the object of JButton and in its argument we will pass the object of the class in which the ActionListener interface is implemented.

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {
    JFrame frame;
    String[] gender={"Male","Female"};
    JLabel nameLabel=new JLabel("NAME");
    JLabel genderLabel=new JLabel("GENDER");
    JLabel fatherNameLabel=new JLabel("FATHER NAME");
    JLabel passwordLabel=new JLabel("PASSWORD");
    JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");
    JLabel cityLabel=new JLabel("CITY");
    JLabel emailLabel=new JLabel("EMAIL");
    JTextField nameTextField=new JTextField();
    JComboBox genderComboBox=new JComboBox(gender);
    JTextField fatherTextField=new JTextField();
    JPasswordField passwordField=new JPasswordField();
    JPasswordField confirmPasswordField=new JPasswordField();
    JTextField cityTextField=new JTextField();
    JTextField emailTextField=new JTextField();
    JButton registerButton=new JButton("REGISTER");
    JButton resetButton=new JButton("RESET");


    RegistrationForm()
    {
        createWindow();
        setLocationAndSize();
        addComponentsToFrame();
        actionEvent();
    }
    public void createWindow()
    {
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }
    public void setLocationAndSize()
    {
        nameLabel.setBounds(20,20,40,70);
        genderLabel.setBounds(20,70,80,70);
        fatherNameLabel.setBounds(20,120,100,70);
        passwordLabel.setBounds(20,170,100,70);
        confirmPasswordLabel.setBounds(20,220,140,70);
        cityLabel.setBounds(20,270,100,70);
        emailLabel.setBounds(20,320,100,70);
        nameTextField.setBounds(180,43,165,23);
        genderComboBox.setBounds(180,93,165,23);
        fatherTextField.setBounds(180,143,165,23);
        passwordField.setBounds(180,193,165,23);
        confirmPasswordField.setBounds(180,243,165,23);
        cityTextField.setBounds(180,293,165,23);
        emailTextField.setBounds(180,343,165,23);
        registerButton.setBounds(70,400,100,35);
        resetButton.setBounds(220,400,100,35);
    }
    public void addComponentsToFrame()
    {
        frame.add(nameLabel);
        frame.add(genderLabel);
        frame.add(fatherNameLabel);
        frame.add(passwordLabel);
        frame.add(confirmPasswordLabel);
        frame.add(cityLabel);
        frame.add(emailLabel);
        frame.add(nameTextField);
        frame.add(genderComboBox);
        frame.add(fatherTextField);
        frame.add(passwordField);
        frame.add(confirmPasswordField);
        frame.add(cityTextField);
        frame.add(emailTextField);
        frame.add(registerButton);
        frame.add(resetButton);
    }
    public void actionEvent()
    {
       //Adding Action Listener to buttons
        registerButton.addActionListener(this);
        resetButton.addActionListener(this);
    }


    @Override
    public void actionPerformed(ActionEvent e) {

    }
}

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

JFrame frame;

String[] gender={"Male","Female"};

JLabel nameLabel=new JLabel("NAME");

JLabel genderLabel=new JLabel("GENDER");

JLabel fatherNameLabel=new JLabel("FATHER NAME");

JLabel passwordLabel=new JLabel("PASSWORD");

JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");

JLabel cityLabel=new JLabel("CITY");

JLabel emailLabel=new JLabel("EMAIL");

JTextField nameTextField=new JTextField();

JComboBox genderComboBox=new JComboBox(gender);

JTextField fatherTextField=new JTextField();

JPasswordField passwordField=new JPasswordField();

JPasswordField confirmPasswordField=new JPasswordField();

JTextField cityTextField=new JTextField();

JTextField emailTextField=new JTextField();

JButton registerButton=new JButton("REGISTER");

JButton resetButton=new JButton("RESET");

RegistrationForm()

{

createWindow();

setLocationAndSize();

addComponentsToFrame();

actionEvent();

}

public void createWindow()

{

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

public void setLocationAndSize()

{

nameLabel.setBounds(20,20,40,70);

genderLabel.setBounds(20,70,80,70);

fatherNameLabel.setBounds(20,120,100,70);

passwordLabel.setBounds(20,170,100,70);

confirmPasswordLabel.setBounds(20,220,140,70);

cityLabel.setBounds(20,270,100,70);

emailLabel.setBounds(20,320,100,70);

nameTextField.setBounds(180,43,165,23);

genderComboBox.setBounds(180,93,165,23);

fatherTextField.setBounds(180,143,165,23);

passwordField.setBounds(180,193,165,23);

confirmPasswordField.setBounds(180,243,165,23);

cityTextField.setBounds(180,293,165,23);

emailTextField.setBounds(180,343,165,23);

registerButton.setBounds(70,400,100,35);

resetButton.setBounds(220,400,100,35);

}

public void addComponentsToFrame()

{

frame.add(nameLabel);

frame.add(genderLabel);

frame.add(fatherNameLabel);

frame.add(passwordLabel);

frame.add(confirmPasswordLabel);

frame.add(cityLabel);

frame.add(emailLabel);

frame.add(nameTextField);

frame.add(genderComboBox);

frame.add(fatherTextField);

frame.add(passwordField);

frame.add(confirmPasswordField);

frame.add(cityTextField);

frame.add(emailTextField);

frame.add(registerButton);

frame.add(resetButton);

}

public void actionEvent()

{

//Adding Action Listener to buttons

registerButton.addActionListener(this);

resetButton.addActionListener(this);

}

@Override

public void actionPerformed(ActionEvent e) {

}

Connecting With Database

Step 5

You can refer to this Article How to connect MySQL Database with Java Using Eclipse for the detailed explanations about the connection of MySQL database with Java.

In order to connect our java program with MySQL database, we need to include MySQL JDBC driver which is a JAR file, namely mysql-connector-java-5.1.45-bin.jar. The version number in the Jar file can be different.

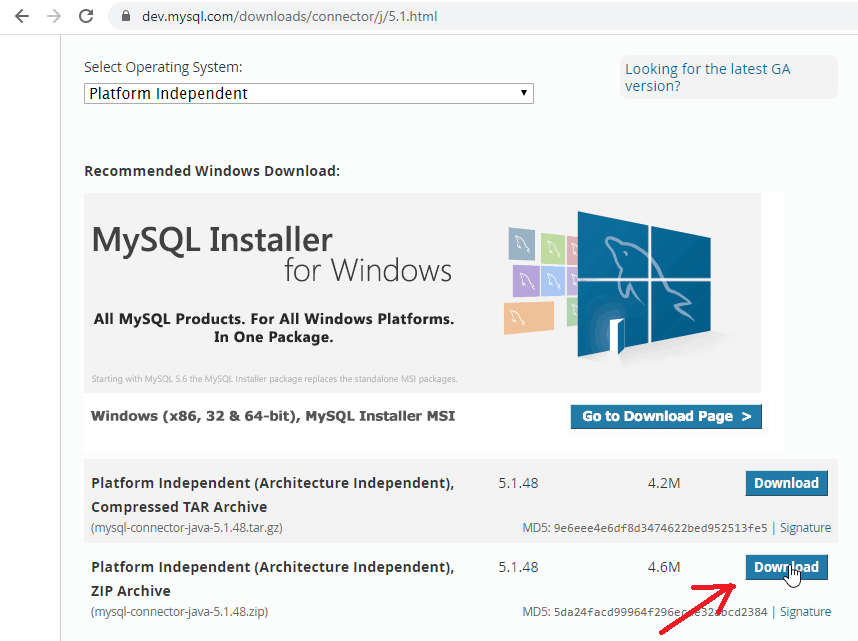

You can download the latest version of MySQL connector from this link (MySQL Connector Java download) As shown in the figure below.

Extract the zip archive and you will get the jar file.

Next, we have to include this jar file into our program so that we will be able to connect our java program with MySQL database.

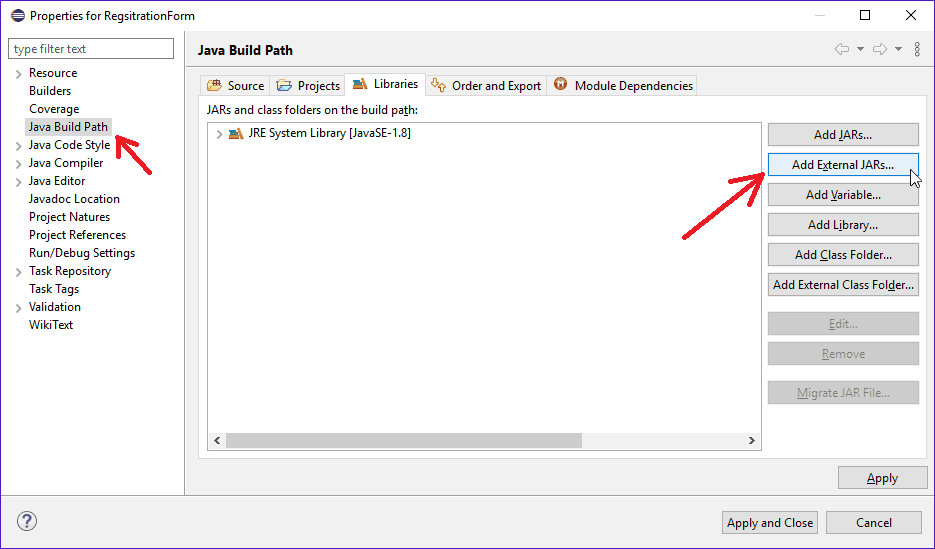

Right-click on the project, go to the properties section then select Java Build Path and click on the Add External JARs button.

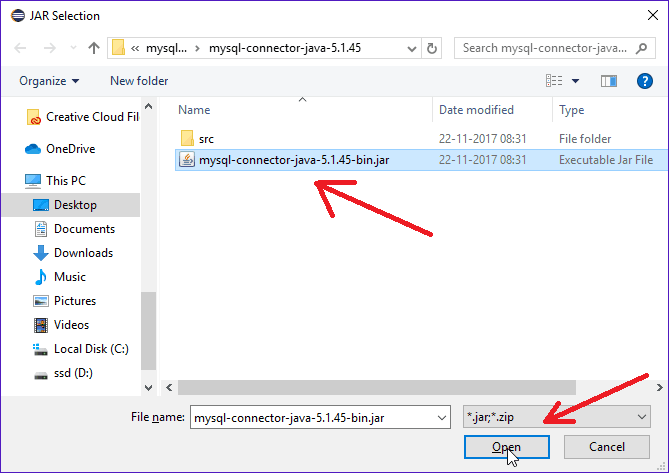

After clicking on the button a pop-up window will appear where you have to select and open the jar file.

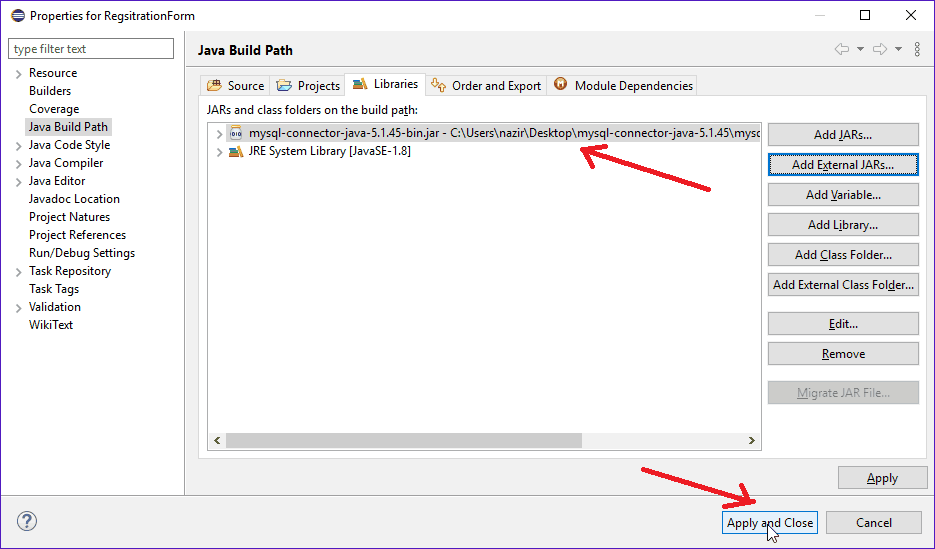

You can see the added Jar file as shown in the figure below. Now click on the Apply and Close button.

Now we want that when we click on the REGISTER button all the entered information should be stored in our database and when we click on the RESET button it should clear the fields and allow us to enter new information also if the passwords entered by the user did not match then it should display us a message that “password did not match”.
For doing this, we should know about Java Database Connectivity and also about Prepared Statement in java.

Now let’s move to the coding part.

import javax.swing.*;
import java.awt.event.*;
import java.awt.*;
import java.sql.*;

public class RegistrationForm implements ActionListener {
    JFrame frame;
    String[] gender={"Male","Female"};
    JLabel nameLabel=new JLabel("NAME");
    JLabel genderLabel=new JLabel("GENDER");
    JLabel fatherNameLabel=new JLabel("FATHER NAME");
    JLabel passwordLabel=new JLabel("PASSWORD");
    JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");
    JLabel cityLabel=new JLabel("CITY");
    JLabel emailLabel=new JLabel("EMAIL");
    JTextField nameTextField=new JTextField();
    JComboBox genderComboBox=new JComboBox(gender);
    JTextField fatherTextField=new JTextField();
    JPasswordField passwordField=new JPasswordField();
    JPasswordField confirmPasswordField=new JPasswordField();
    JTextField cityTextField=new JTextField();
    JTextField emailTextField=new JTextField();
    JButton registerButton=new JButton("REGISTER");
    JButton resetButton=new JButton("RESET");


    RegistrationForm()
    {
        createWindow();
        setLocationAndSize();
        addComponentsToFrame();
        actionEvent();
    }
    public void createWindow()
    {
        frame=new JFrame();
        frame.setTitle("Registration Form");
        frame.setBounds(40,40,380,600);
        frame.getContentPane().setBackground(Color.pink);
        frame.getContentPane().setLayout(null);
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setResizable(false);
    }
    public void setLocationAndSize()
    {
        nameLabel.setBounds(20,20,40,70);
        genderLabel.setBounds(20,70,80,70);
        fatherNameLabel.setBounds(20,120,100,70);
        passwordLabel.setBounds(20,170,100,70);
        confirmPasswordLabel.setBounds(20,220,140,70);
        cityLabel.setBounds(20,270,100,70);
        emailLabel.setBounds(20,320,100,70);
        nameTextField.setBounds(180,43,165,23);
        genderComboBox.setBounds(180,93,165,23);
        fatherTextField.setBounds(180,143,165,23);
        passwordField.setBounds(180,193,165,23);
        confirmPasswordField.setBounds(180,243,165,23);
        cityTextField.setBounds(180,293,165,23);
        emailTextField.setBounds(180,343,165,23);
        registerButton.setBounds(70,400,100,35);
        resetButton.setBounds(220,400,100,35);
    }
    public void addComponentsToFrame()
    {
        frame.add(nameLabel);
        frame.add(genderLabel);
        frame.add(fatherNameLabel);
        frame.add(passwordLabel);
        frame.add(confirmPasswordLabel);
        frame.add(cityLabel);
        frame.add(emailLabel);
        frame.add(nameTextField);
        frame.add(genderComboBox);
        frame.add(fatherTextField);
        frame.add(passwordField);
        frame.add(confirmPasswordField);
        frame.add(cityTextField);
        frame.add(emailTextField);
        frame.add(registerButton);
        frame.add(resetButton);
    }
    public void actionEvent()
    {
        registerButton.addActionListener(this);
        resetButton.addActionListener(this);
    }


    @Override
    public void actionPerformed(ActionEvent e) {
        if(e.getSource()==registerButton)
        {
            try {
                //Creating Connection Object
                Connection connection=DriverManager.getConnection("jdbc:mysql://localhost:3306/myDatabase","root","root");
                //Preapared Statement
                PreparedStatement Pstatement=connection.prepareStatement("insert into student values(?,?,?,?,?,?,?)");
                //Specifying the values of it's parameter
                Pstatement.setString(1,nameTextField.getText());
                Pstatement.setString(2,genderComboBox.getSelectedItem().toString());
                Pstatement.setString(3,fatherTextField.getText());
                Pstatement.setString(4,passwordField.getText());
                Pstatement.setString(5,confirmPasswordField.getText());
                Pstatement.setString(6,cityTextField.getText());
                Pstatement.setString(7,emailTextField.getText());
                //Checking for the Password match
                if(passwordField.getText().equalsIgnoreCase(confirmPasswordField.getText()))
                {
                    //Executing query
                    Pstatement.executeUpdate();
                    JOptionPane.showMessageDialog(null,"Data Registered Successfully");
                }
                else
                {
                    JOptionPane.showMessageDialog(null,"password did not match");
                }

            } catch (SQLException e1) {
                e1.printStackTrace();
            }


        }
        if(e.getSource()==resetButton)
        {
            //Clearing Fields
            nameTextField.setText("");
            genderComboBox.setSelectedItem("Male");
            fatherTextField.setText("");
            passwordField.setText("");
            confirmPasswordField.setText("");
            cityTextField.setText("");
            emailTextField.setText("");
        }

    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;

public class RegistrationForm implements ActionListener {

JFrame frame;

String[] gender={"Male","Female"};

JLabel nameLabel=new JLabel("NAME");

JLabel genderLabel=new JLabel("GENDER");

JLabel fatherNameLabel=new JLabel("FATHER NAME");

JLabel passwordLabel=new JLabel("PASSWORD");

JLabel confirmPasswordLabel=new JLabel("CONFIRM PASSWORD");

JLabel cityLabel=new JLabel("CITY");

JLabel emailLabel=new JLabel("EMAIL");

JTextField nameTextField=new JTextField();

JComboBox genderComboBox=new JComboBox(gender);

JTextField fatherTextField=new JTextField();

JPasswordField passwordField=new JPasswordField();

JPasswordField confirmPasswordField=new JPasswordField();

JTextField cityTextField=new JTextField();

JTextField emailTextField=new JTextField();

JButton registerButton=new JButton("REGISTER");

JButton resetButton=new JButton("RESET");

RegistrationForm()

{

createWindow();

setLocationAndSize();

addComponentsToFrame();

actionEvent();

}

public void createWindow()

{

frame=new JFrame();

frame.setTitle("Registration Form");

frame.setBounds(40,40,380,600);

frame.getContentPane().setBackground(Color.pink);

frame.getContentPane().setLayout(null);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setResizable(false);

}

public void setLocationAndSize()

{

nameLabel.setBounds(20,20,40,70);

genderLabel.setBounds(20,70,80,70);

fatherNameLabel.setBounds(20,120,100,70);

passwordLabel.setBounds(20,170,100,70);

confirmPasswordLabel.setBounds(20,220,140,70);

cityLabel.setBounds(20,270,100,70);

emailLabel.setBounds(20,320,100,70);

nameTextField.setBounds(180,43,165,23);

genderComboBox.setBounds(180,93,165,23);

fatherTextField.setBounds(180,143,165,23);

passwordField.setBounds(180,193,165,23);

confirmPasswordField.setBounds(180,243,165,23);

cityTextField.setBounds(180,293,165,23);

emailTextField.setBounds(180,343,165,23);

registerButton.setBounds(70,400,100,35);

resetButton.setBounds(220,400,100,35);

}

public void addComponentsToFrame()

{

frame.add(nameLabel);

frame.add(genderLabel);

frame.add(fatherNameLabel);

frame.add(passwordLabel);

frame.add(confirmPasswordLabel);

frame.add(cityLabel);

frame.add(emailLabel);

frame.add(nameTextField);

frame.add(genderComboBox);

frame.add(fatherTextField);

frame.add(passwordField);

frame.add(confirmPasswordField);

frame.add(cityTextField);

frame.add(emailTextField);

frame.add(registerButton);

frame.add(resetButton);

}

public void actionEvent()

{

registerButton.addActionListener(this);

resetButton.addActionListener(this);

}

@Override

public void actionPerformed(ActionEvent e) {

if(e.getSource()==registerButton)

{

try {

//Creating Connection Object

Connection connection=DriverManager.getConnection("jdbc:mysql://localhost:3306/myDatabase","root","root");

//Preapared Statement

PreparedStatement Pstatement=connection.prepareStatement("insert into student values(?,?,?,?,?,?,?)");

//Specifying the values of it's parameter

Pstatement.setString(1,nameTextField.getText());

Pstatement.setString(2,genderComboBox.getSelectedItem().toString());

Pstatement.setString(3,fatherTextField.getText());

Pstatement.setString(4,passwordField.getText());

Pstatement.setString(5,confirmPasswordField.getText());

Pstatement.setString(6,cityTextField.getText());

Pstatement.setString(7,emailTextField.getText());

//Checking for the Password match

if(passwordField.getText().equalsIgnoreCase(confirmPasswordField.getText()))

{

//Executing query

Pstatement.executeUpdate();

JOptionPane.showMessageDialog(null,"Data Registered Successfully");

}

else

{

JOptionPane.showMessageDialog(null,"password did not match");

}

} catch (SQLException e1) {

e1.printStackTrace();

}

if(e.getSource()==resetButton)

{

//Clearing Fields

nameTextField.setText("");

genderComboBox.setSelectedItem("Male");

fatherTextField.setText("");

passwordField.setText("");

confirmPasswordField.setText("");

cityTextField.setText("");

emailTextField.setText("");

}

public class Main {
    public static void main(String[] args)
    {
        new RegistrationForm();
    }
}

public class Main {

public static void main(String[] args)

{

new RegistrationForm();

}

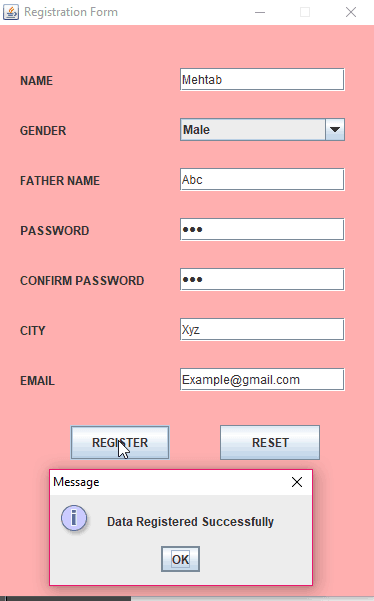

Now run your program, enter the information and click on the REGISTER button.

As we can see that it displayed the message “Data Registered Successfully”.

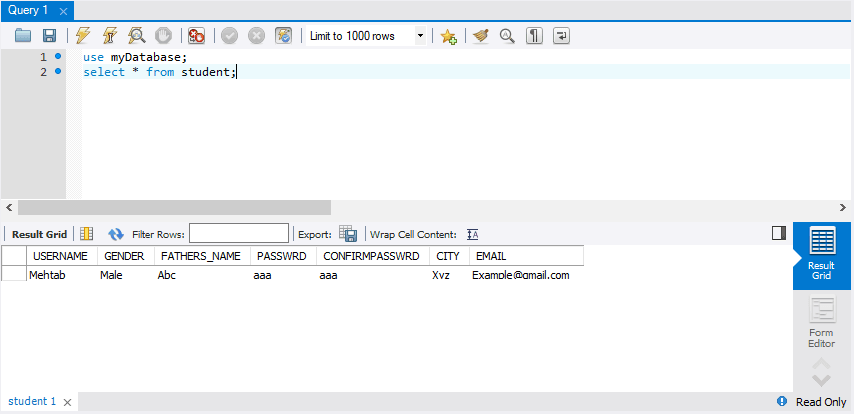

To check whether it has been saved in the database or not go to MySQL workbench and execute this query.

use myDatabase;
select * from student;

1 2	use myDatabase; select * from student;

You can see that our data has been saved successfully.

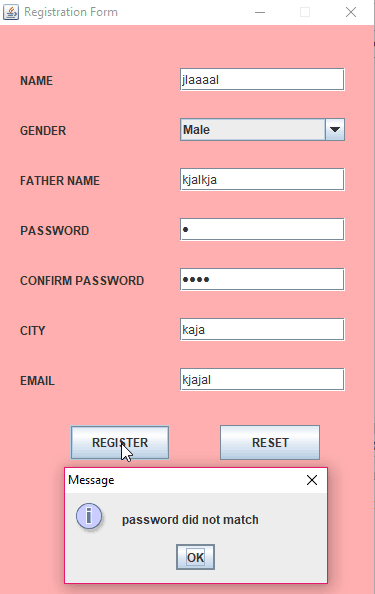

Now click on the RESET button and again input some information with two different passwords.

As we can see it displayed the message “password did not match”.
You can also download the source code of this project. Download link is given below.

Student Registration Form in Java Swing with Database Connectivity Source Code

Here you can download the simple registration form in Java source code.

The link of the file is given below.

Download Source Code

That’s all for this tutorial in which we have learned how to create a simple registration form in Java with MySQL database connectivity. Please comment below if you have any queries regarding this post. Thank You.

People are also Reading…..

21 thoughts on “Registration Form in Java With Database Connectivity Tutorial”

shreya

February 1, 2018 at 8:12 am

This is the best article i have ever seen regarding registration form in java with database connectivity

Thank you for posting this
- Mehtab Hameed

  February 2, 2018 at 4:05 am

  Thank you shreya
  Keep visiting for more posts
varsha singh

May 24, 2018 at 3:06 pm

getSelectedItem().toString() generates random string in mysql
- Mehtab Hameed

  June 12, 2018 at 4:03 pm

  Did you follow the tutorial correctly?
Evariste DJE

June 5, 2018 at 9:17 am

congratulation…your work is good. Go on like that……
kurumsal bakım anlaşması

October 15, 2018 at 9:13 am

Thank You Post
bakım anlaşması

October 15, 2018 at 2:40 pm

Nice Post
chetnilu

February 1, 2019 at 11:03 am

Great work, keep it up so that my kind of person who is slow to java can understand.
John

July 21, 2019 at 7:29 pm

Nothing happens when I click the register button.
- John

  August 6, 2019 at 8:54 pm

  Hello? Anybody? It doesn’t work!
Vijendra

July 27, 2019 at 5:37 am

Thankyou for this poat it is very nice block and all concept declear very simple. Thanks once again.
- Mehtab Hameed

  July 27, 2019 at 5:41 am

  Thank you Vijendra
zeleke

October 15, 2019 at 10:28 pm

thanks it is very good .carry on!
Jamilu salisu

December 3, 2019 at 11:48 am

Gods job may god help you, I will like to be communicating with u
Dennis

February 17, 2020 at 3:52 pm

Thanks for the training.
I love your ideas and visualization of work and I want to learn more from you. Therefore I need your help.

Best regards.
Jelili

March 22, 2020 at 9:17 pm

I sincerely thank you very much for this article, it is well explained. Unlike other articles I have read on this topic, yours is very clear and step-by-step instructed for easy understanding. 5***** for you without reservation of any kind, we’ll done, and God bless you.
- Mehtab Hameed

  March 22, 2020 at 3:48 pm

  Thank you so much Jelili
paps

April 19, 2020 at 6:08 am

It is very well explained in step by step so nicely . I am able to create my own page in very quick time eventhough I am new to this. Thank you so much,
Jayakumar

December 10, 2020 at 8:53 pm

how to create registration and login page in java using sql
- Mehtab Hameed

  December 10, 2020 at 3:27 pm

  Hello Jayakumar

  Thank you for the comment
  I will soon publish a post about this..

  Keep sharing !!
Olonade Tawwab

January 22, 2023 at 3:34 pm

Yes, I do. Thank you for this tutorial, You are a brilliant person
Keep the handworks✊👍
