How to Create Multi User Login Form in Java using MySQL Database

Hello Friends, In this tutorial, we will learn How to Create Multi User Login Form in Java using MySQL Database step by step. You can implement this functionality in your Java Projects for improved security and robustness.

It will be a role-based login in Java in which the user will enter the username and password and his account type (Admin or User). Upon successful validation of the credentials, the user will be redirected to their respective dashboard.

Preview

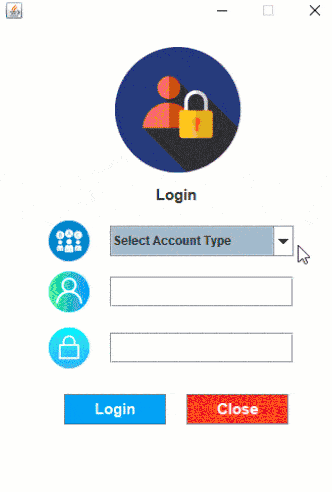

Take a look at the preview of our Multi User Login form using Java, as it will provide you with a clearer understanding of the objective we aim to accomplish in this tutorial.

Prerequisite

Softwares

First, make sure you have downloaded and installed the following piece of software in your system.

Java Development Kit

MySQL

Tutorials

To create our multi-user login form in Java, it is important to have a solid understanding of the following Java Swing components and Java Button click Event.

JFrame Tutorial

Once you have completed the topics mentioned above, we can now proceed with our tutorial on How to Create a Multi User Login form in Java using MySQL Database.

How to Create Multi User Login Form in Java using MySQL Database

#1 Setting up MySQL Database

In this step, we will set up the MySQL Database. I am going to use MySQL Command Line Client for this purpose. If you don’t know how to correctly download and install MySQL Command Line Client in your system, then you can refer to my previous article How to install MySQL Commend Line Client.
Once you have successfully downloaded and installed the MySQL Command Line Client on your system, proceed to open it.

The MySQL Command Line Client will prompt you to enter your password, which should be the same password you provided during its installation. Simply input the password and press the enter button.

How to Create Multi User Login Form in Java using MySQL Database fig – 1

#2 Creating Database and Table in MySQL

Now in this step, we will create the database (multiuserdb) in this example and inside that database, we will create a table (accoutnsinfo).
Next, we will insert values and create two rows in our table, as given below.

create database multiuserdb;
use multiuserdb;
create table accountsinfo(ACCOUNT_TYPE varchar(30) not null,USERNAME varchar(30),PASSWORD varchar(30));
insert into accountsinfo values('Admin','Mahtab','1234');
insert into accountsinfo values('User','John','6789');

create database multiuserdb;

use multiuserdb;

create table accountsinfo(ACCOUNT_TYPE varchar(30) not null,USERNAME varchar(30),PASSWORD varchar(30));

insert into accountsinfo values('Admin','Mahtab','1234');

insert into accountsinfo values('User','John','6789');

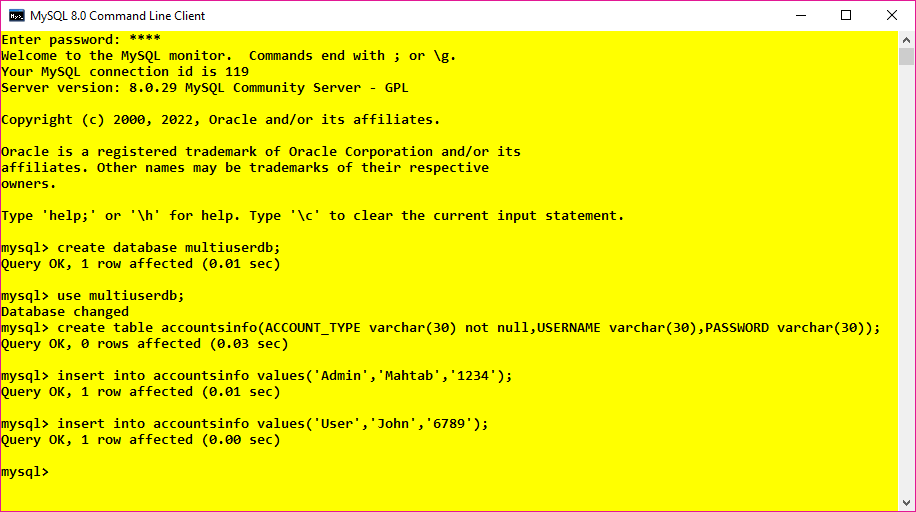

How to Create Multi User Login Form in Java using MySQL Database fig – 2

#3 Designing the Login Form

In this step, we will design our Multi-User Login Form.
To begin, ensure you import all the essential packages required for our program. This step will enable us to access the necessary interfaces and classes used throughout our code.

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.*;

import javax.swing.*;

import java.awt.*;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

import java.sql.*;

Next, create a class MultiUserLoginForm. Inside this class, create the constructor of the class along with the main method.

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.*;

public class MultiUserLoginForm {

	MultiUserLoginForm(){

	}

	public static void main(String[] args) {

	}

}

import javax.swing.*;

import java.awt.*;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

import java.sql.*;

public class MultiUserLoginForm {

MultiUserLoginForm(){

}

public static void main(String[] args) {

}

Next, create the object of the class MultiUserLoginForm, inside the main method.

 MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();

1	MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();

Next, inside the class, MultiUserLoginForm, create the objects of all the swing components that we want to add in our Multi-User Login Form.

    JFrame frame;
    JLabel loginIcon;
    JLabel title;
    JLabel userIcon;
    JLabel passwordIcon;
    JLabel selectAccountIcon;
    JTextField usernameTextField;
    JPasswordField passwordField;
    JButton loginButton;
    JButton closeButton;
    JComboBox comboBox;
    String[] values={"Select Account Type","Admin","User"};

JFrame frame;

JLabel loginIcon;

JLabel title;

JLabel userIcon;

JLabel passwordIcon;

JLabel selectAccountIcon;

JTextField usernameTextField;

JPasswordField passwordField;

JButton loginButton;

JButton closeButton;

JComboBox comboBox;

String[] values={"Select Account Type","Admin","User"};

Next, inside the constructor of the class MultiUserLoginForm, we will set the properties of all the swing components that we have created.

I have also added the icons to our Login Form, which I will provide you along with the source code. You have to add those icons inside the project folder.
Code is given below.

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.*;

public class MultiUserLoginForm {

	JFrame frame;
	JLabel loginIcon;
	JLabel title;
	JLabel userIcon;
	JLabel passwordIcon;
	JLabel selectAccountIcon;
	JTextField usernameTextField;
	JPasswordField passwordField;
	JButton loginButton;
	JButton closeButton;
	JComboBox comboBox;
	String[] values={"Select Account Type","Admin","User"};

	MultiUserLoginForm(){

		frame=new JFrame();
		frame.setSize(350,500);
		frame.setLocationRelativeTo(null);
		frame.getContentPane().setLayout(null);
		frame.getContentPane().setBackground(Color.white);
		frame.setResizable(false);


		ImageIcon icon1=new ImageIcon("login.png");
		loginIcon =new JLabel(icon1);
		loginIcon.setBounds(115,20,icon1.getIconWidth(),icon1.getIconHeight());

		title=new JLabel("Login");
		title.setBounds(155,130,150,70);
		title.setFont(new Font("ARIAL",Font.BOLD,15));


		comboBox=new JComboBox(values);
		comboBox.setBounds(110,195,180,30);
		comboBox.setBackground(Color.white);


		ImageIcon icon2=new ImageIcon("usertype.png");
		selectAccountIcon =new JLabel(icon2);
		selectAccountIcon.setBounds(50,190,icon2.getIconWidth(),icon2.getIconHeight());

		ImageIcon icon3=new ImageIcon("user.png");
		userIcon =new JLabel(icon3);
		userIcon.setBounds(50,240,icon3.getIconWidth(),icon3.getIconHeight());


		usernameTextField=new JTextField();
		usernameTextField.setBounds(110,245,180,30);
		usernameTextField.setFont(new Font("ARIAL",Font.BOLD,15));


		ImageIcon icon4=new ImageIcon("lock.png");
		passwordIcon = new JLabel(icon4);
		passwordIcon.setBounds(50,295,icon4.getIconWidth(),icon4.getIconHeight());


		passwordField=new JPasswordField();
		passwordField.setBounds(110,300,180,30);
		passwordField.setFont(new Font("ARIAL",Font.BOLD,15));


		loginButton=new JButton("Login");
		loginButton.setBounds(65,360,100,30);
		loginButton.setFocusable(false);
		loginButton.setFont(new Font("Arial",Font.BOLD,15));
		loginButton.setBackground(new Color(0,165,246));
		loginButton.setForeground(Color.white);


		closeButton=new JButton("Close");
		closeButton.setBounds(185,360,100,30);
		closeButton.setFocusable(false);
		closeButton.setFont(new Font("Arial",Font.BOLD,15));
		closeButton.setBackground(new Color(244,67,54));
		closeButton.setForeground(Color.white);


		frame.add(loginIcon);
		frame.add(title);
		frame.add(userIcon);
		frame.add(usernameTextField);
		frame.add(passwordIcon);
		frame.add(passwordField);
		frame.add(selectAccountIcon);
		frame.add(comboBox);
		frame.add(loginButton);
		frame.add(closeButton);

		frame.setVisible(true);
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

	}

	public static void main(String[] args) {

		MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();

	}

}

100

101

102

103

104

105

106

107

108

import javax.swing.*;

import java.awt.*;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

import java.sql.*;

public class MultiUserLoginForm {

JFrame frame;

JLabel loginIcon;

JLabel title;

JLabel userIcon;

JLabel passwordIcon;

JLabel selectAccountIcon;

JTextField usernameTextField;

JPasswordField passwordField;

JButton loginButton;

JButton closeButton;

JComboBox comboBox;

String[] values={"Select Account Type","Admin","User"};

MultiUserLoginForm(){

frame=new JFrame();

frame.setSize(350,500);

frame.setLocationRelativeTo(null);

frame.getContentPane().setLayout(null);

frame.getContentPane().setBackground(Color.white);

frame.setResizable(false);

ImageIcon icon1=new ImageIcon("login.png");

loginIcon =new JLabel(icon1);

loginIcon.setBounds(115,20,icon1.getIconWidth(),icon1.getIconHeight());

title=new JLabel("Login");

title.setBounds(155,130,150,70);

title.setFont(new Font("ARIAL",Font.BOLD,15));

comboBox=new JComboBox(values);

comboBox.setBounds(110,195,180,30);

comboBox.setBackground(Color.white);

ImageIcon icon2=new ImageIcon("usertype.png");

selectAccountIcon =new JLabel(icon2);

selectAccountIcon.setBounds(50,190,icon2.getIconWidth(),icon2.getIconHeight());

ImageIcon icon3=new ImageIcon("user.png");

userIcon =new JLabel(icon3);

userIcon.setBounds(50,240,icon3.getIconWidth(),icon3.getIconHeight());

usernameTextField=new JTextField();

usernameTextField.setBounds(110,245,180,30);

usernameTextField.setFont(new Font("ARIAL",Font.BOLD,15));

ImageIcon icon4=new ImageIcon("lock.png");

passwordIcon = new JLabel(icon4);

passwordIcon.setBounds(50,295,icon4.getIconWidth(),icon4.getIconHeight());

passwordField=new JPasswordField();

passwordField.setBounds(110,300,180,30);

passwordField.setFont(new Font("ARIAL",Font.BOLD,15));

loginButton=new JButton("Login");

loginButton.setBounds(65,360,100,30);

loginButton.setFocusable(false);

loginButton.setFont(new Font("Arial",Font.BOLD,15));

loginButton.setBackground(new Color(0,165,246));

loginButton.setForeground(Color.white);

closeButton=new JButton("Close");

closeButton.setBounds(185,360,100,30);

closeButton.setFocusable(false);

closeButton.setFont(new Font("Arial",Font.BOLD,15));

closeButton.setBackground(new Color(244,67,54));

closeButton.setForeground(Color.white);

frame.add(loginIcon);

frame.add(title);

frame.add(userIcon);

frame.add(usernameTextField);

frame.add(passwordIcon);

frame.add(passwordField);

frame.add(selectAccountIcon);

frame.add(comboBox);

frame.add(loginButton);

frame.add(closeButton);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

public static void main(String[] args) {

MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();

}

Now run your program.

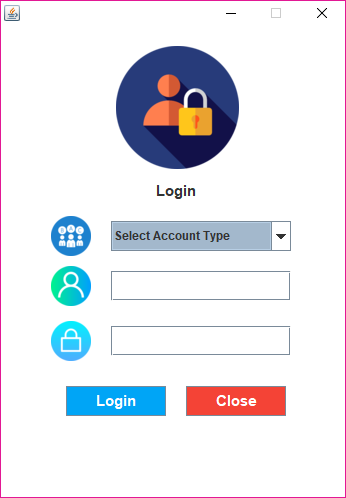

As you can see that we have successfully designed our Login Form.

#4 Adding ActionListener to Buttons Using Anonymous Inner Class

Next, inside the constructor of the class MultiUserLoginForm, we will implement the ActionListener to both of our buttons using the anonymous inner class.

loginButton.addActionListener(new ActionListener() {

			@Override
			public void actionPerformed(ActionEvent e) {


			}

		});


		closeButton.addActionListener(new ActionListener() {

			@Override
			public void actionPerformed(ActionEvent e) {


			}

		});

loginButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

}

});

closeButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

}

});

#5 Adding MySQL Connector JAR file

Now in this step, we will connect our program with the MySQL Database using JDBC (Java Database Connectivity).

In order to establish a connection between your Java program and the MySQL database, you must include the MySQL JDBC driver, which comes in the form of a JAR file.
The latest version of the MySQL Connector can be downloaded from the following link (MySQL Connector Java download).

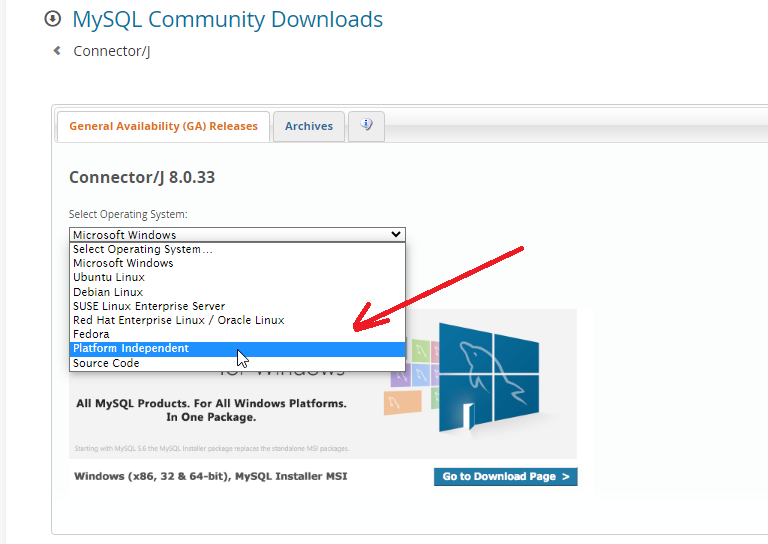

Upon visiting the link, opt for the “Platform Independent” option from the drop-down menu, as demonstrated in the figure below.

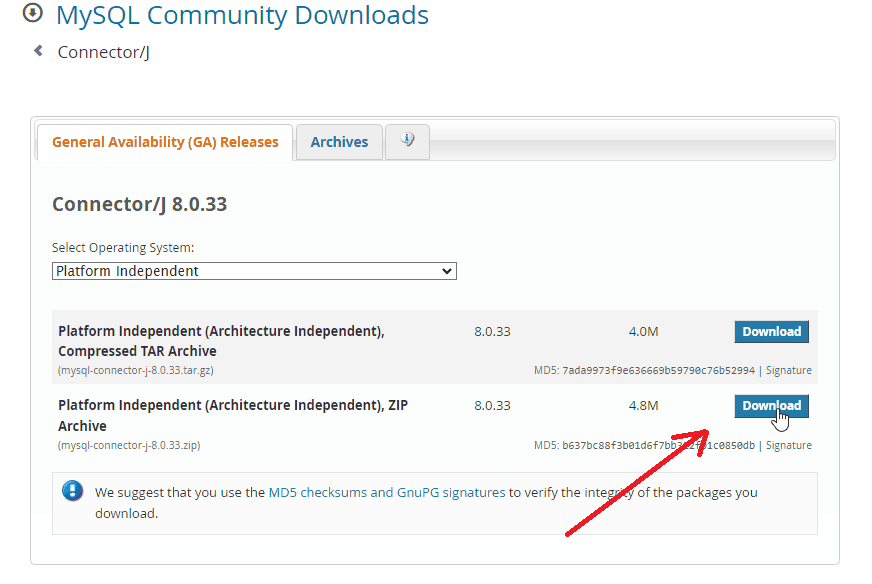

Then download the Platform Independent (Architecture Independent), ZIP Archive as shown below.

After extracting the zip archive, you will get the JAR file.
After this, you need to include this JAR file in your program, which will enable the connection of your Java program with the MySQL database.

For NetBeans users,
- Right click on the Libraries folder then select Add JAR/Folder and then you can add the JAR file to your project.
For Eclipse users,
- Right click on the Project then select Properties —>>>>Java Build Path and then you can choose Add External JARs button to add the JAR file.
For IntelliJ IDEA users,
- Go to File––>>>>Project Structure—>>>>Libraries then click on the “+” sign and select Java and then you can add the JAR file.

#6 Establishing Database Connection

With the JAR file already added, we are now prepared to establish the connection between our Java program and the MySQL Database.

We want that when someone clicks on the Login Button, then our program should be connected to the database. Therefore, we will code this inside the actionPerformed() method, which is related to the Login Button.

Establish the connection using , DriverManager.getConnection(String URL), which returns a Connection reference.

In the String URL parameter, You have to write in the following format: jdbc:mysql://localhost:3306/multiuserdb, “root”, “root” where:
jdbc represents the API.
mysql indicates the database.

localhost denotes the server name where MySQL is running.
3306 represents the port number.
multiuserdb is the name of the database. If your database has a different name, replace it accordingly.

The first “root” stands for the MySQL database’s default username.
The second “root” is the password provided during MySQL database installation.
To handle potential SQL Exceptions during the connection process, ensure to enclose the code within a try-catch block.

loginButton.addActionListener(new ActionListener() {

			@Override
			public void actionPerformed(ActionEvent e) {

				try {

					//Establishing Connection
					Connection connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/multiuserdb", "root", "root");


				} catch (SQLException exception) {

					System.out.println("Error while connecting to the database");

				}


			}

		});

loginButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

try {

//Establishing Connection

Connection connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/multiuserdb", "root", "root");

} catch (SQLException exception) {

System.out.println("Error while connecting to the database");

}

});

#7 Validating User Credentials and Redirecting based on User Role

As we know, there are 3 fields in our Multi Login Form, Account_type, Username, and Password.
Now we want that,

if any of the field is empty and the person clicks on the Login Button then a message dialog box should appear with the message “Please Enter all Fields“.
When the Username and Password are incorrect, then the message should appear “Username & Password did not match“.

If the Username & Password are correct and the right account type has been chosen, then the new window should open related to the user type. For this, we will create a new JFrame in a separate class.
If the person clicks on the close button, then the program should exit.
The whole program of our Multi User Login Form in Java is given below.

//Importing necessary packages
import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.*;


//Creating class
public class MultiUserLoginForm {

	//Creating objects of the Swing Components
	JFrame frame;
	JLabel loginIcon;
	JLabel title;
	JLabel userIcon;
	JLabel passwordIcon;
	JLabel selectAccountIcon;
	JTextField usernameTextField;
	JPasswordField passwordField;
	JButton loginButton;
	JButton closeButton;
	JComboBox comboBox;

	//Creating values that we will add in the combobox
	String[] values={"Select Account Type","Admin","User"};

	//Creating constructor of the class
	MultiUserLoginForm(){


		//Setting properties of all the components
		frame=new JFrame();
		frame.setSize(350,500);
		frame.setLocationRelativeTo(null);
		frame.getContentPane().setLayout(null);
		frame.getContentPane().setBackground(Color.white);
		frame.setResizable(false);


		ImageIcon icon1=new ImageIcon("login.png");
		loginIcon =new JLabel(icon1);
		loginIcon.setBounds(115,20,icon1.getIconWidth(),icon1.getIconHeight());

		title=new JLabel("Login");
		title.setBounds(155,130,150,70);
		title.setFont(new Font("ARIAL",Font.BOLD,15));


		comboBox=new JComboBox(values);
		comboBox.setBounds(110,195,180,30);
		comboBox.setBackground(Color.white);


		ImageIcon icon2=new ImageIcon("usertype.png");
		selectAccountIcon =new JLabel(icon2);
		selectAccountIcon.setBounds(50,190,icon2.getIconWidth(),icon2.getIconHeight());

		ImageIcon icon3=new ImageIcon("user.png");
		userIcon =new JLabel(icon3);
		userIcon.setBounds(50,240,icon3.getIconWidth(),icon3.getIconHeight());


		usernameTextField=new JTextField();
		usernameTextField.setBounds(110,245,180,30);
		usernameTextField.setFont(new Font("ARIAL",Font.BOLD,15));


		ImageIcon icon4=new ImageIcon("lock.png");
		passwordIcon = new JLabel(icon4);
		passwordIcon.setBounds(50,295,icon4.getIconWidth(),icon4.getIconHeight());


		passwordField=new JPasswordField();
		passwordField.setBounds(110,300,180,30);
		passwordField.setFont(new Font("ARIAL",Font.BOLD,15));


		loginButton=new JButton("Login");
		loginButton.setBounds(65,360,100,30);
		loginButton.setFocusable(false);
		loginButton.setFont(new Font("Arial",Font.BOLD,15));
		loginButton.setBackground(new Color(0,165,246));
		loginButton.setForeground(Color.white);


		closeButton=new JButton("Close");
		closeButton.setBounds(185,360,100,30);
		closeButton.setFocusable(false);
		closeButton.setFont(new Font("Arial",Font.BOLD,15));
		closeButton.setBackground(new Color(244,67,54));
		closeButton.setForeground(Color.white);


		frame.add(loginIcon);
		frame.add(title);
		frame.add(userIcon);
		frame.add(usernameTextField);
		frame.add(passwordIcon);
		frame.add(passwordField);
		frame.add(selectAccountIcon);
		frame.add(comboBox);
		frame.add(loginButton);
		frame.add(closeButton);


		//Implementing ActionListener using Anonymous Inner class

		loginButton.addActionListener(new ActionListener() {
			@Override
			public void actionPerformed(ActionEvent e) {
				try {
					//Getting values of the fields and storing them into String
					String accountType=comboBox.getSelectedItem().toString();
					String userName=usernameTextField.getText();
					String password=passwordField.getText();

					//Establishing database connection
					Connection connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/multiuserdb", "root", "root");
					//Creating object of Prepared Statement
					PreparedStatement preparedStatement=connection.prepareStatement("select * from accountsinfo");
					//Creating object of Result Set
					ResultSet resultSet=preparedStatement.executeQuery();
					//Creating condition to check the Empty Field
					if(accountType.equalsIgnoreCase("Select Account Type")||userName.equalsIgnoreCase("")||password.equalsIgnoreCase("")){
						JOptionPane.showMessageDialog(null,"Please Enter all Fields");
					}
					else {

						//Looping the result set
						while (resultSet.next()) {

							if (accountType.equalsIgnoreCase(resultSet.getString("ACCOUNT_TYPE")) && userName.equalsIgnoreCase(resultSet.getString("USERNAME")) && password.equalsIgnoreCase(resultSet.getString("PASSWORD"))) {
								//Validating Admin Credentials
								if (accountType.equalsIgnoreCase("Admin")) {

									AdminWindow adminWindow = new AdminWindow();//Opening the Admin Window
									frame.dispose();
									break;

									//Validating User Credentials
								} else if (accountType.equalsIgnoreCase("User")) {

									UserWindow userWindow = new UserWindow();//Opening the User Window
									frame.dispose();
									break;

								}
							}

						}

						//Creating condition to check if the username & password did not match
						if(resultSet.isAfterLast()){
							JOptionPane.showMessageDialog(null,"Username & Password did not match");
						}


					}


				} catch (SQLException exception) {


					//If there is any error while connecting to database
					System.out.println("Error while connecting to the database");

				}


			}
		});


		//Actions to perform on clicking the Close Button
		closeButton.addActionListener(new ActionListener() {
			@Override
			public void actionPerformed(ActionEvent e) {
				System.exit(0);
			}
		});


		frame.setVisible(true);
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

	}
	public static void main(String[] args){


		//Creating the object of Class
		MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();


	}

}

//Creating Admin window in separate class
class AdminWindow extends JFrame{

	AdminWindow(){
		JFrame frame=new JFrame();
		JLabel label=new JLabel("Admin Window");

		frame.setSize(300,300);
		frame.setLocationRelativeTo(null);
		frame.getContentPane().setLayout(null);

		label.setBounds(100,100,100,50);
		frame.add(label);

		frame.setVisible(true);
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
	}

}


//Creating user window in separate class
class UserWindow extends JFrame{

	UserWindow(){
		JFrame frame=new JFrame();
		JLabel label=new JLabel("User Window");

		frame.setSize(300,300);
		frame.setLocationRelativeTo(null);
		frame.getContentPane().setLayout(null);

		label.setBounds(100,100,100,50);
		frame.add(label);

		frame.setVisible(true);
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
	}

}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

//Importing necessary packages

import javax.swing.*;

import java.awt.*;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

import java.sql.*;

//Creating class

public class MultiUserLoginForm {

//Creating objects of the Swing Components

JFrame frame;

JLabel loginIcon;

JLabel title;

JLabel userIcon;

JLabel passwordIcon;

JLabel selectAccountIcon;

JTextField usernameTextField;

JPasswordField passwordField;

JButton loginButton;

JButton closeButton;

JComboBox comboBox;

//Creating values that we will add in the combobox

String[] values={"Select Account Type","Admin","User"};

//Creating constructor of the class

MultiUserLoginForm(){

//Setting properties of all the components

frame=new JFrame();

frame.setSize(350,500);

frame.setLocationRelativeTo(null);

frame.getContentPane().setLayout(null);

frame.getContentPane().setBackground(Color.white);

frame.setResizable(false);

ImageIcon icon1=new ImageIcon("login.png");

loginIcon =new JLabel(icon1);

loginIcon.setBounds(115,20,icon1.getIconWidth(),icon1.getIconHeight());

title=new JLabel("Login");

title.setBounds(155,130,150,70);

title.setFont(new Font("ARIAL",Font.BOLD,15));

comboBox=new JComboBox(values);

comboBox.setBounds(110,195,180,30);

comboBox.setBackground(Color.white);

ImageIcon icon2=new ImageIcon("usertype.png");

selectAccountIcon =new JLabel(icon2);

selectAccountIcon.setBounds(50,190,icon2.getIconWidth(),icon2.getIconHeight());

ImageIcon icon3=new ImageIcon("user.png");

userIcon =new JLabel(icon3);

userIcon.setBounds(50,240,icon3.getIconWidth(),icon3.getIconHeight());

usernameTextField=new JTextField();

usernameTextField.setBounds(110,245,180,30);

usernameTextField.setFont(new Font("ARIAL",Font.BOLD,15));

ImageIcon icon4=new ImageIcon("lock.png");

passwordIcon = new JLabel(icon4);

passwordIcon.setBounds(50,295,icon4.getIconWidth(),icon4.getIconHeight());

passwordField=new JPasswordField();

passwordField.setBounds(110,300,180,30);

passwordField.setFont(new Font("ARIAL",Font.BOLD,15));

loginButton=new JButton("Login");

loginButton.setBounds(65,360,100,30);

loginButton.setFocusable(false);

loginButton.setFont(new Font("Arial",Font.BOLD,15));

loginButton.setBackground(new Color(0,165,246));

loginButton.setForeground(Color.white);

closeButton=new JButton("Close");

closeButton.setBounds(185,360,100,30);

closeButton.setFocusable(false);

closeButton.setFont(new Font("Arial",Font.BOLD,15));

closeButton.setBackground(new Color(244,67,54));

closeButton.setForeground(Color.white);

frame.add(loginIcon);

frame.add(title);

frame.add(userIcon);

frame.add(usernameTextField);

frame.add(passwordIcon);

frame.add(passwordField);

frame.add(selectAccountIcon);

frame.add(comboBox);

frame.add(loginButton);

frame.add(closeButton);

//Implementing ActionListener using Anonymous Inner class

loginButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

try {

//Getting values of the fields and storing them into String

String accountType=comboBox.getSelectedItem().toString();

String userName=usernameTextField.getText();

String password=passwordField.getText();

//Establishing database connection

Connection connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/multiuserdb", "root", "root");

//Creating object of Prepared Statement

PreparedStatement preparedStatement=connection.prepareStatement("select * from accountsinfo");

//Creating object of Result Set

ResultSet resultSet=preparedStatement.executeQuery();

//Creating condition to check the Empty Field

if(accountType.equalsIgnoreCase("Select Account Type")||userName.equalsIgnoreCase("")||password.equalsIgnoreCase("")){

JOptionPane.showMessageDialog(null,"Please Enter all Fields");

}

else {

//Looping the result set

while (resultSet.next()) {

if (accountType.equalsIgnoreCase(resultSet.getString("ACCOUNT_TYPE")) && userName.equalsIgnoreCase(resultSet.getString("USERNAME")) && password.equalsIgnoreCase(resultSet.getString("PASSWORD"))) {

//Validating Admin Credentials

if (accountType.equalsIgnoreCase("Admin")) {

AdminWindow adminWindow = new AdminWindow();//Opening the Admin Window

frame.dispose();

break;

//Validating User Credentials

} else if (accountType.equalsIgnoreCase("User")) {

UserWindow userWindow = new UserWindow();//Opening the User Window

frame.dispose();

break;

}

//Creating condition to check if the username & password did not match

if(resultSet.isAfterLast()){

JOptionPane.showMessageDialog(null,"Username & Password did not match");

}

} catch (SQLException exception) {

//If there is any error while connecting to database

System.out.println("Error while connecting to the database");

}

});

//Actions to perform on clicking the Close Button

closeButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

System.exit(0);

}

});

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

public static void main(String[] args){

//Creating the object of Class

MultiUserLoginForm multiUserLoginForm=new MultiUserLoginForm();

}

//Creating Admin window in separate class

class AdminWindow extends JFrame{

AdminWindow(){

JFrame frame=new JFrame();

JLabel label=new JLabel("Admin Window");

frame.setSize(300,300);

frame.setLocationRelativeTo(null);

frame.getContentPane().setLayout(null);

label.setBounds(100,100,100,50);

frame.add(label);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

//Creating user window in separate class

class UserWindow extends JFrame{

UserWindow(){

JFrame frame=new JFrame();

JLabel label=new JLabel("User Window");

frame.setSize(300,300);

frame.setLocationRelativeTo(null);

frame.getContentPane().setLayout(null);

label.setBounds(100,100,100,50);

frame.add(label);

frame.setVisible(true);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

Now run your program and enter the credentials.

Download Source Code

You can download the source of the Multi User Login Form in Java Swing by clicking the link below.

Download Source Code

So this was all from this tutorial about how to create multi user login form in Java using MySQL Database. If you have any questions or doubts regarding this post, feel free to let me know by commenting below.

Related Articles…

How to Connect MS Access Database in Java

Preview

Prerequisite

Softwares

Tutorials

How to Create Multi User Login Form in Java using MySQL Database

#1 Setting up MySQL Database

#2 Creating Database and Table in MySQL

#3 Designing the Login Form

#4 Adding ActionListener to Buttons Using Anonymous Inner Class

#5 Adding MySQL Connector JAR file

#6 Establishing Database Connection

#7 Validating User Credentials and Redirecting based on User Role

Download Source Code

Leave a Comment Cancel reply
